        Adjustable Pedestals

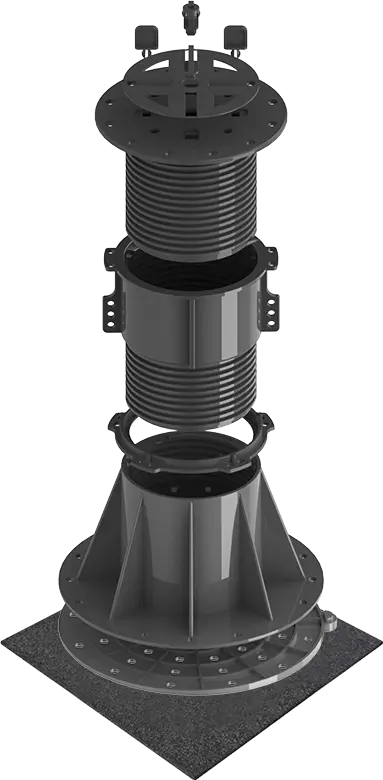

        Adjustable Pedestal Systems Features



        Adjustable height: The system allows for easy adjustment of height to accommodate different levels or slopes.
        Stability: Ensures stability and support for various surfaces such as tiles, pavers, or decking.
        Versatility: Suitable for a wide range of applications including outdoor terraces, rooftops, balconies, and indoor spaces.
        Durability: Designed to withstand weather elements and heavy loads, ensuring long-term performance.
        Easy installation: Quick and straightforward installation process, requiring minimal tools and expertise.
        Drainage: Facilitates proper water drainage, preventing water accumulation and promoting surface longevity.
        Compatibility: Compatible with various surface materials and shapes, offering flexibility in design and layout.

        PRODUCT CATALOG |  PRODUCT DATA SHEET

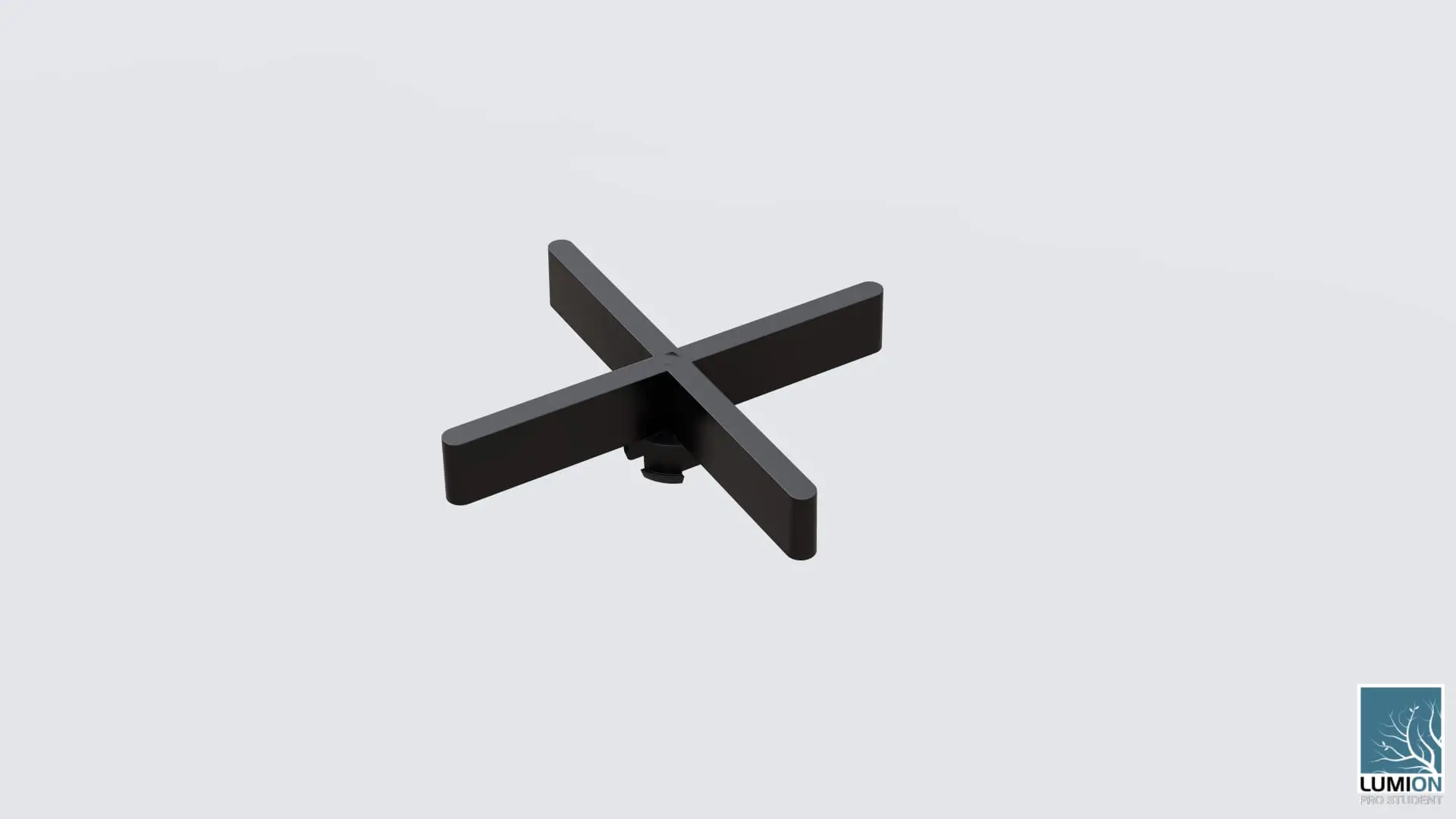

        T-SP

        Joint strips that can be used in alternative thicknesses and shapes.
        Code: T-sp, T-st, T-sf, T-aw, T-ar

        TS

        Adjustment gasket made of EPDM material in alternative thicknesses of
        3/64“ and 5/64“ to fix calibration problem.
        Code: T-s

        Head

        Joint strips and carcass installation fixtures can be placed on side and
        center slots provided on the top pedestal connected to intermediate
        part or bottom pedestal to enable tile or lathe flooring.
        Code: Head

        T-C

        An intermediate part is used to raise products beyond 7 1/8“. Multiple
        intermediate parts can be used in a module. Products allow electric and
        water utility installations to the side and top flanges, keeping the
        installations above ground level and enabling technical and accessibility
        advantages.
        Code: T-c

        T-I

        Tightening locks that are generally used for higher levels prevent loss
        of adjustment arising from vibrations in long term.
        Code: T-

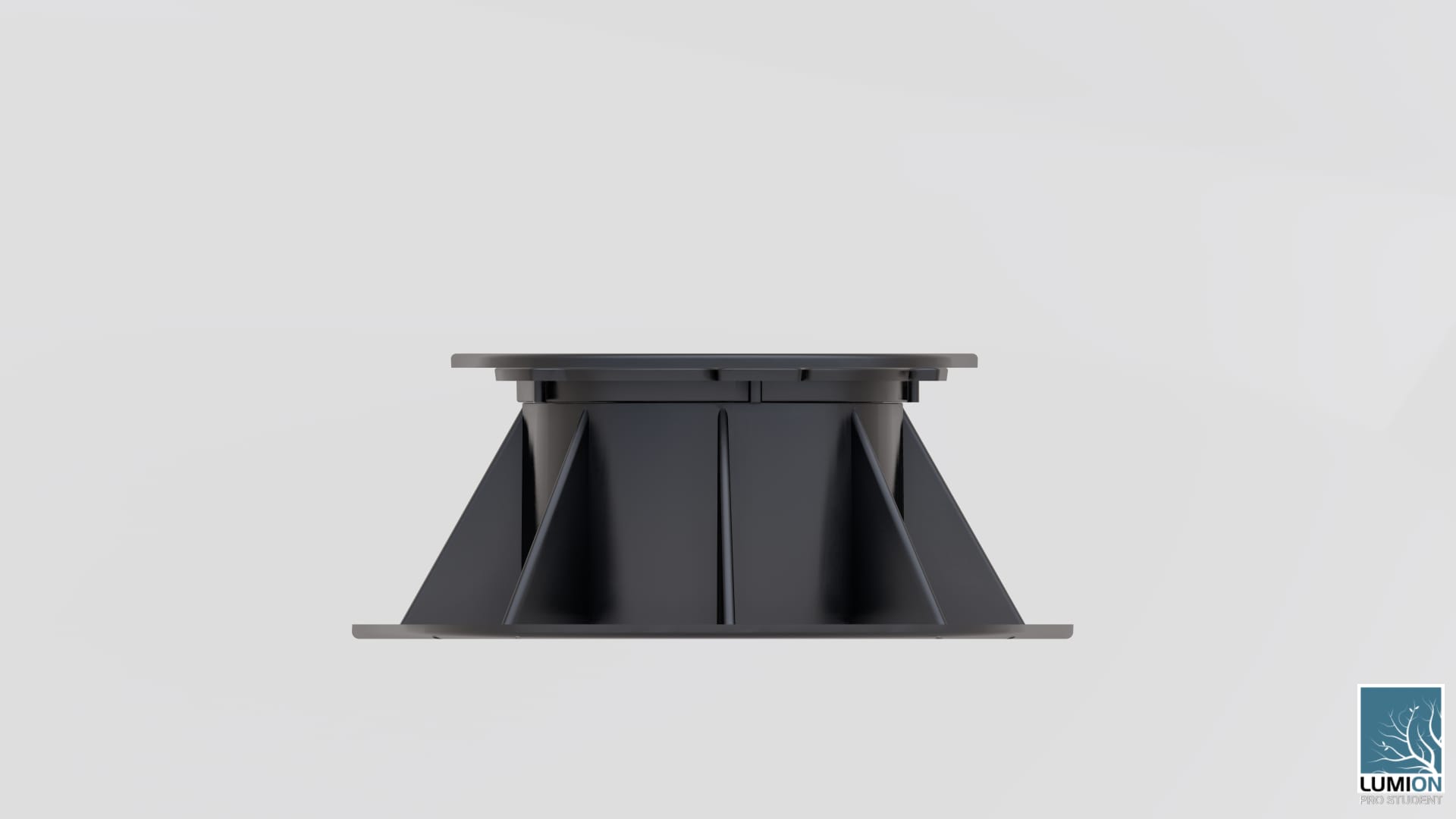

        Base

        The large diameter of the bottom pedestal eliminates the need to fix on
        ground surface. However, slots are provided for fixtures if required.
        The Bottom edges of the part are designed with trimming lines in order to solve
        distance problems that may be encountered on side and corner details
        also have beveling to prevent damage to insulation.
        Code: Base

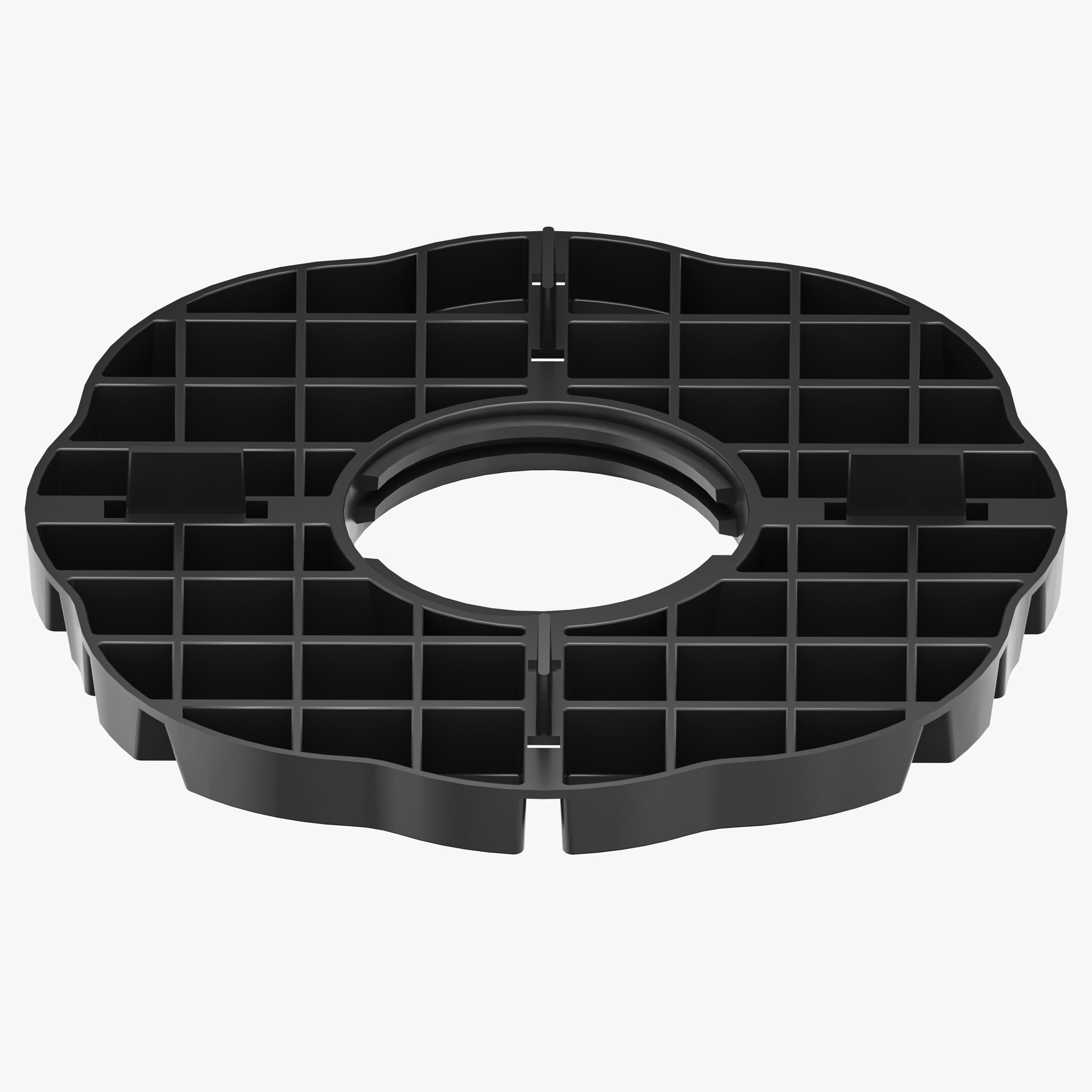

        T-SC

        The Slope corrector on which the bottom pedestal can be seated eliminates
        the impact of slopes formed for drainage on the pedestals. Slope
        correctors that can tolerate all degrees of angles are produced in 1%
        and 2% alternatives, and can be used in multiple layers.
        Code: T-sc

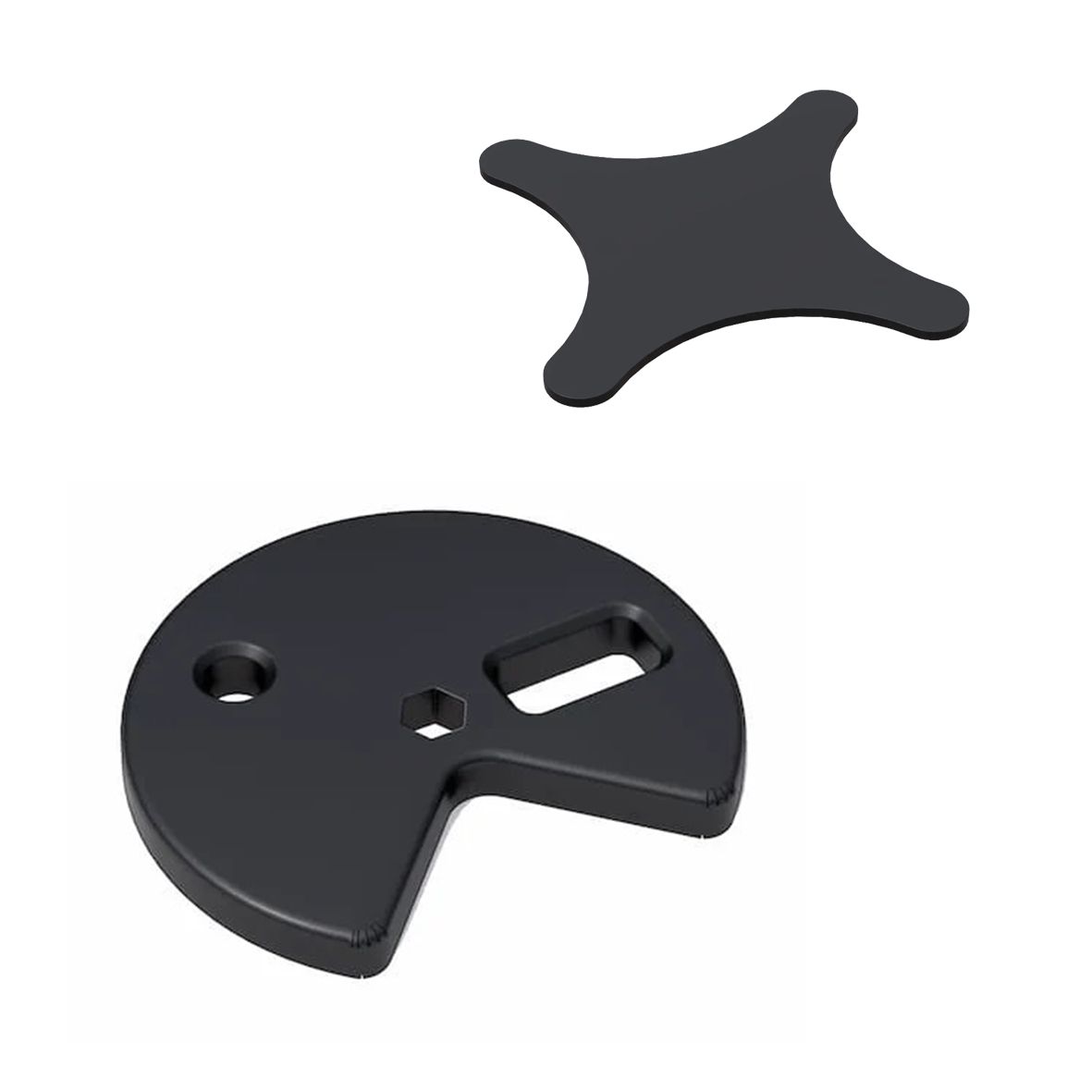

        T-p

        An Orthopedic base pad made of EPDM raw material is used on rough
        ground surfaces to absorb impact vibrations that may occur within the
        system.
        Code: T-p

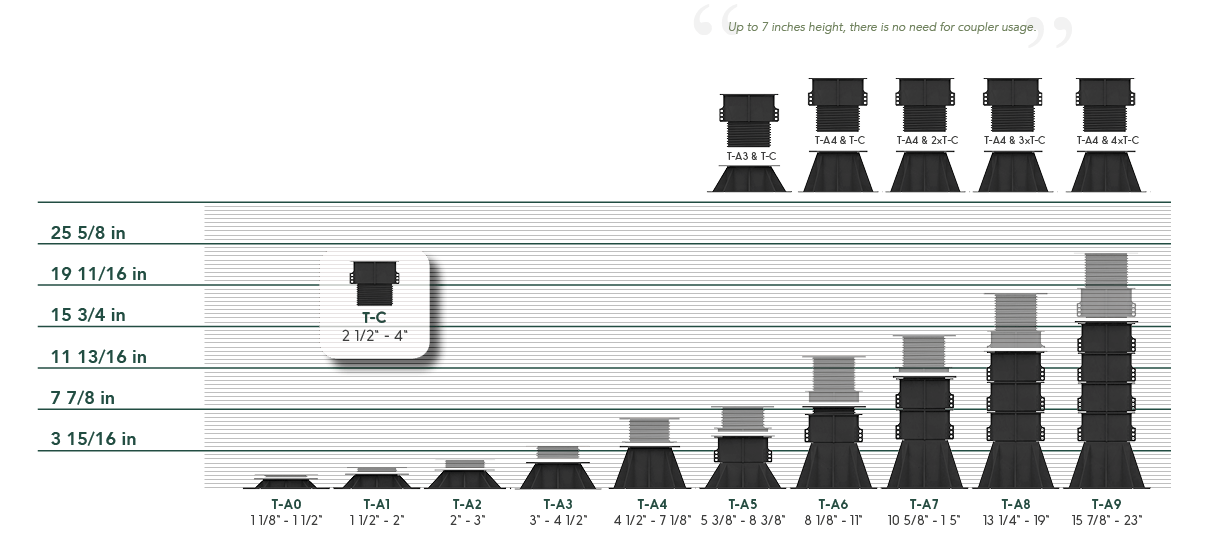

        Adjustment Ranges
